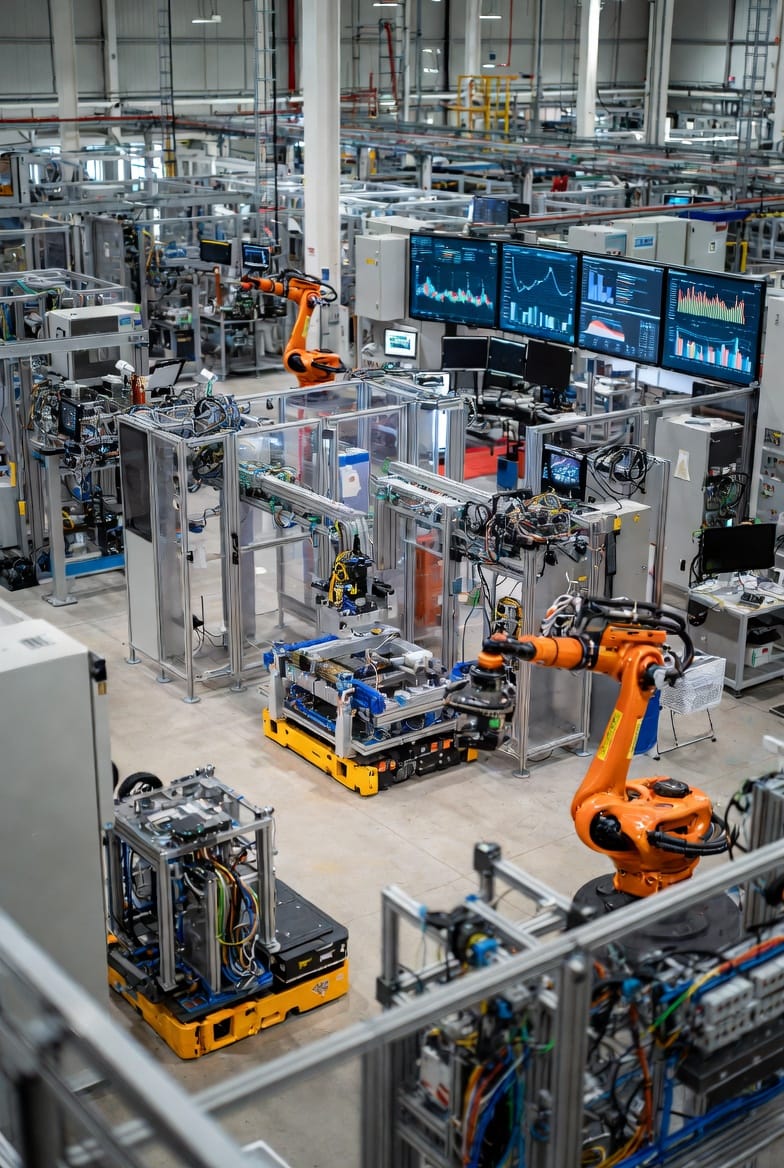

Choosing FFC FPC Connectors with 30+ Mating Cycles for Reliable Robotic Assembly and Industry 4.0
Robots don't have "tactile feel." Discover how to spec 30+ mating cycle FPC connectors that survive the rigors of automated Industry 4.0 assembly lines.
The traditional concept of "mating cycles" was built for the era of manual assembly. An operator would plug in a cable once, close the lock, and the device would ship. But in the Industry 4.0 era, the math has changed. Between robotic assembly retries, automated test jigs, and modular rework, a connector can easily hit its rated limit before it even reaches the consumer.
The "Robotic Retry" Reality
A robotic arm is incredibly precise, but it lacks the "tactile feedback" of a human. If a robot tries to insert an FPC and the cable is slightly kinked, the robot may "retry" the insertion three or four times. In a standard 10-cycle rated connector, you've just used 40% of the life of that part in ten seconds.
- Plating Wear: Every insertion and extraction "scrubs" the metal. A 30+ cycle connector requires Hard Gold Plating (typically 3u" to 10u" thick over a nickel underplate). Cheap "Gold Flash" will wear through after 5 or 6 cycles, exposing the base phosphor bronze which will then oxidize, leading to high contact resistance and signal failure.
Autolock: The 2026 Automation King
To reach 30+ cycles in an automated line, you should move away from traditional ZIF locks and toward Non-ZIF Autolocks.
- Mechanism: Autolocks (pioneered by brands like Iris and I-PEX) use a spring-loaded mechanical snap. The robot simply pushes the cable in. The connector "grabs" the side notches of the FPC.
- Why it's better for cycles: There is no manual lever to snap or wear out. The force required to insert is consistent every time. To release, you press two buttons on the side—a motion that is much easier to automate with a robotic gripper than the delicate "flip" of a 0.2mm ZIF lever.
Spec'ing for the "Modular Future"
Industry 4.0 also implies modularity. If you are building a modular industrial sensor that might have its camera module swapped every few months, you cannot use a standard consumer-grade connector. Look for parts that explicitly mention "High-Durability Terminals." These terminals are shaped like a "U" rather than a sharp "V" to reduce the friction-wear on the FPC's gold pads. This ensures that even after 30 or 50 swaps, the contact resistance stays below the 50mΩ threshold.
